What is Pneumatic Flow Rate PID Control System?

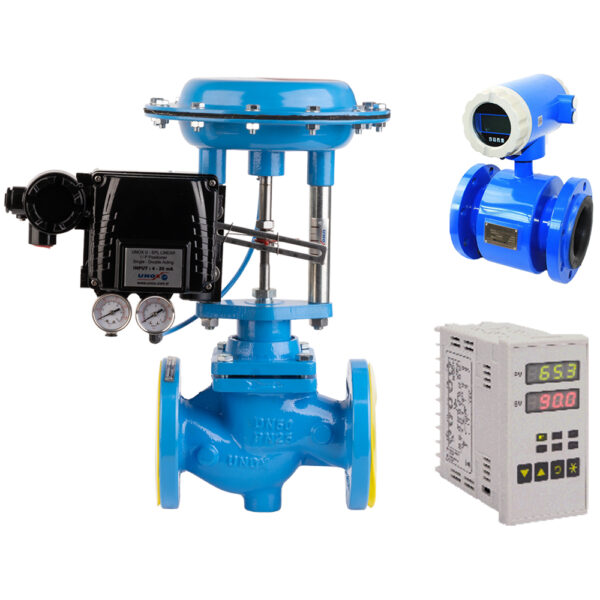

The pneumatic flow PID control system is used in industrial environments to precisely regulate the flow of liquids or gases. At the center of this system is the flow meter. The flow meter generates real-time flow data in digital form from the pipeline. This data is transmitted directly to the control device via cable, completing the system’s initial measurement step.

The control device compares the received data with the pre-set target flow rate. If the instantaneous flow falls below the target, the device sends a signal to the positioner to open the valve further. Conversely, if the flow exceeds the desired value, the control device sends a signal to partially close the valve. This feedback loop continues until the flow reaches the target value. In other words, the system continuously monitors, compares, and responds.

The PID algorithm plays a key role in this process. The algorithm evaluates real-time changes using proportional, integral, and derivative calculations. This allows the system not only to respond to sudden changes but also to compensate for deviations that occur over time. As a result, flow control is achieved more stably and efficiently. When used especially with pneumatic valves, this system offers the advantages of high precision and low energy consumption.

Many manufacturing facilities benefit from this type of automation system. The food, chemical, pharmaceutical, and energy industries widely use this technology. However, high-quality equipment and expert installation support are essential for system efficiency. Before implementation, the correct valve, actuator, and control device must be selected.

In addition, you can access technical documents on pneumatic control systems and obtain one-on-one consultancy by contacting the authorized personnel through the Unox page. Alternatively, you can find product catalogs on the Unoxonline platform, which features a user-friendly interface. For easy access to ordering processes, logistics information, and technical details, you can contact Unoxonline directly.

Pneumatic flow PID control systems have become indispensable in modern industry in terms of precision, safety, and energy efficiency. However, to achieve maximum performance from these systems, it is essential to start with the right engineering solutions.
