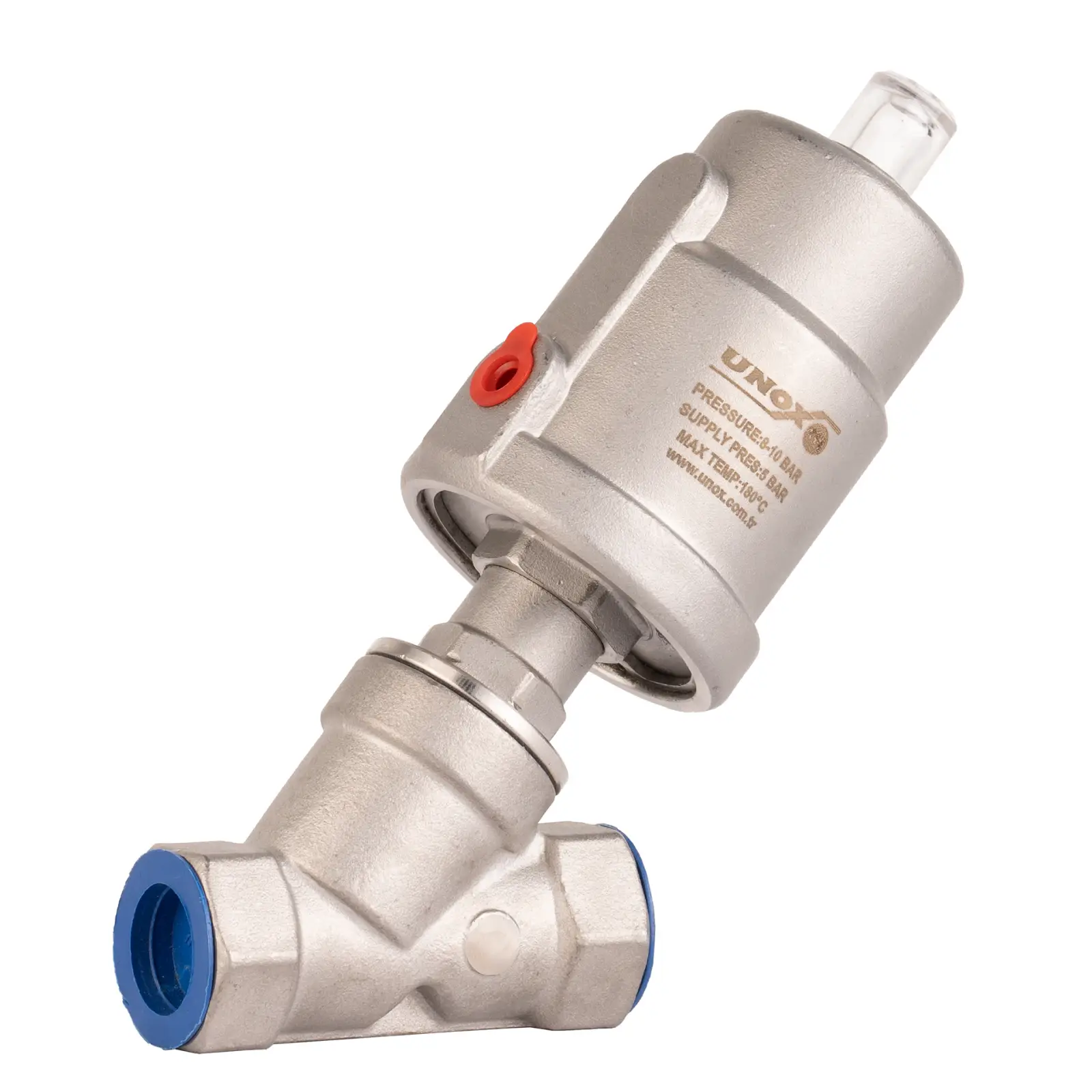

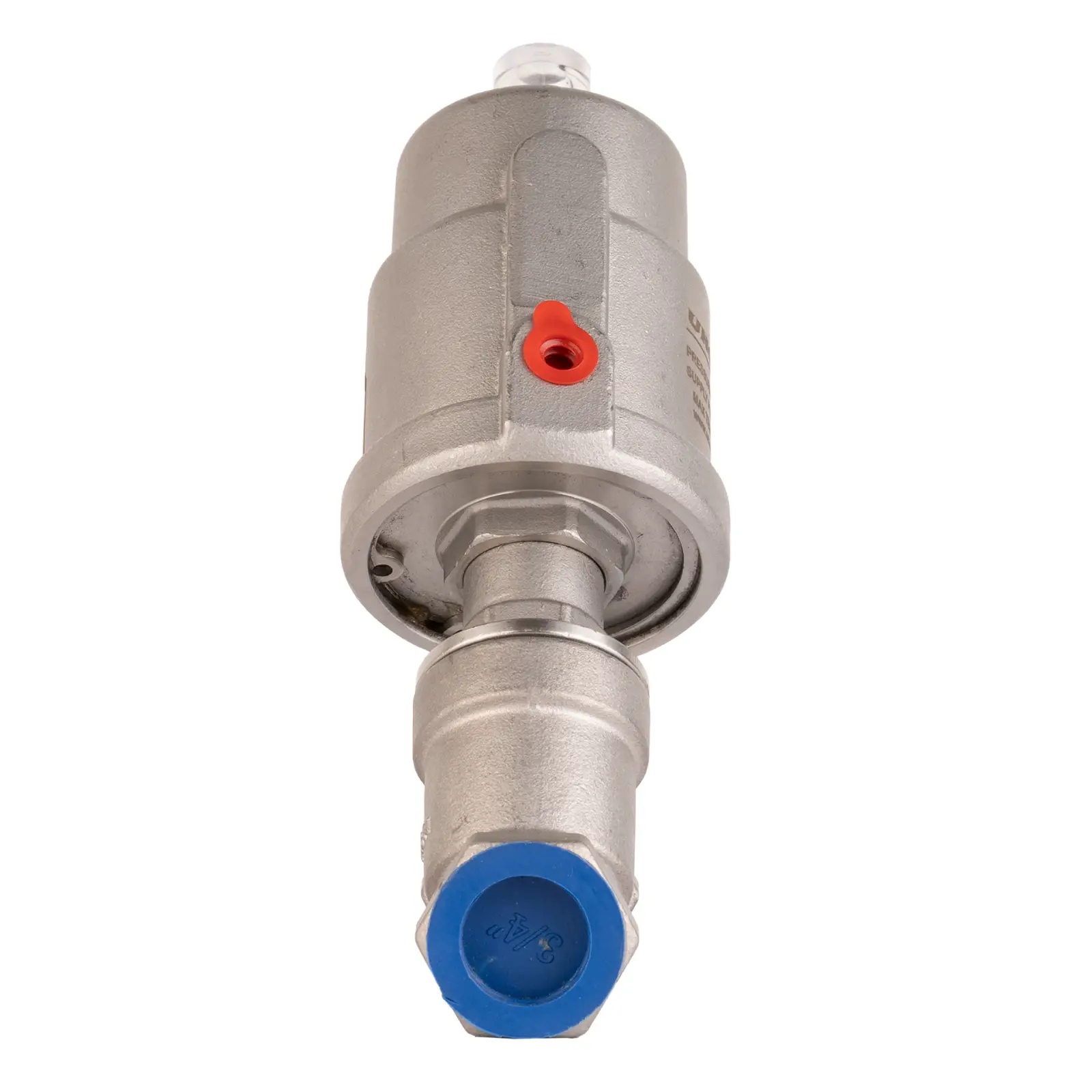

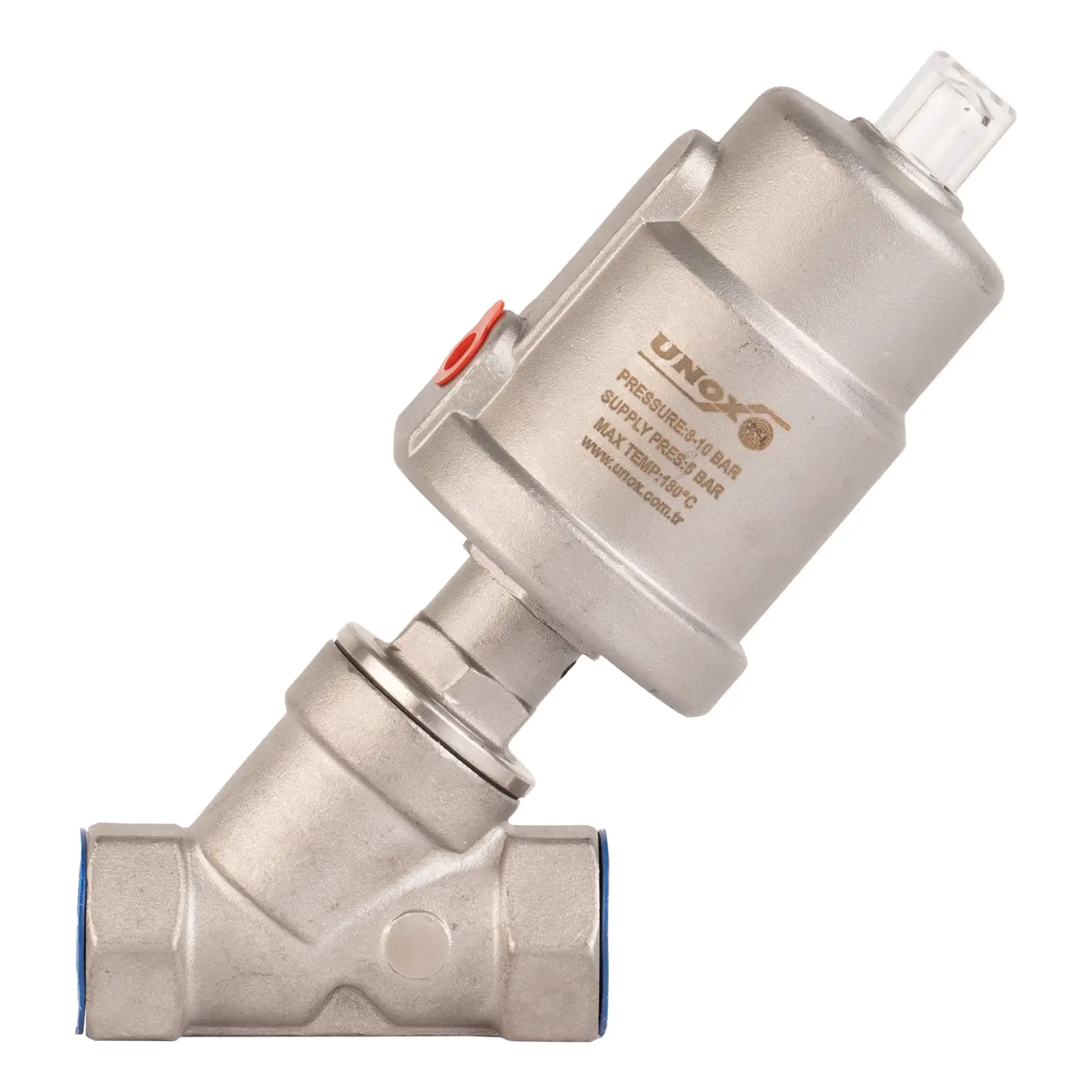

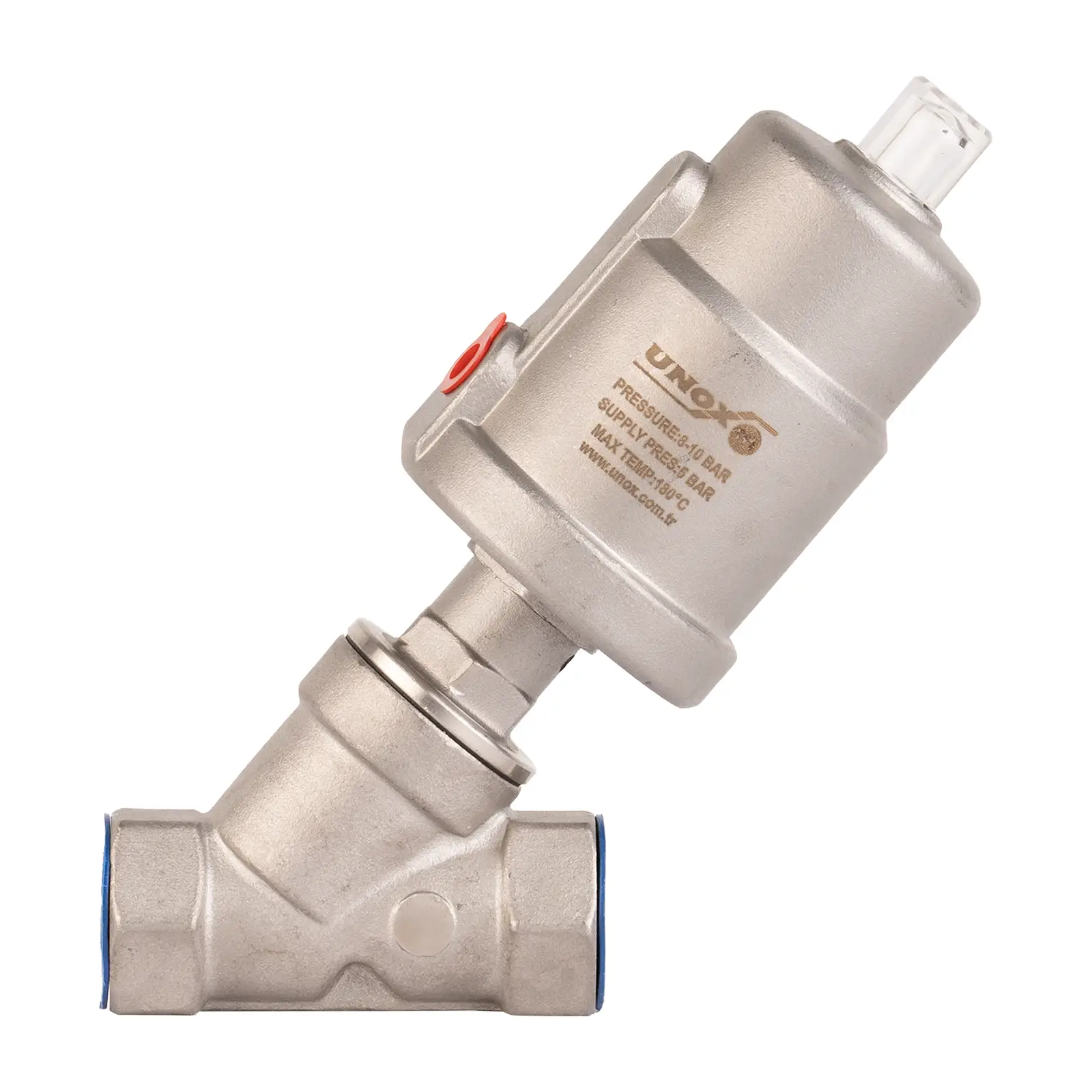

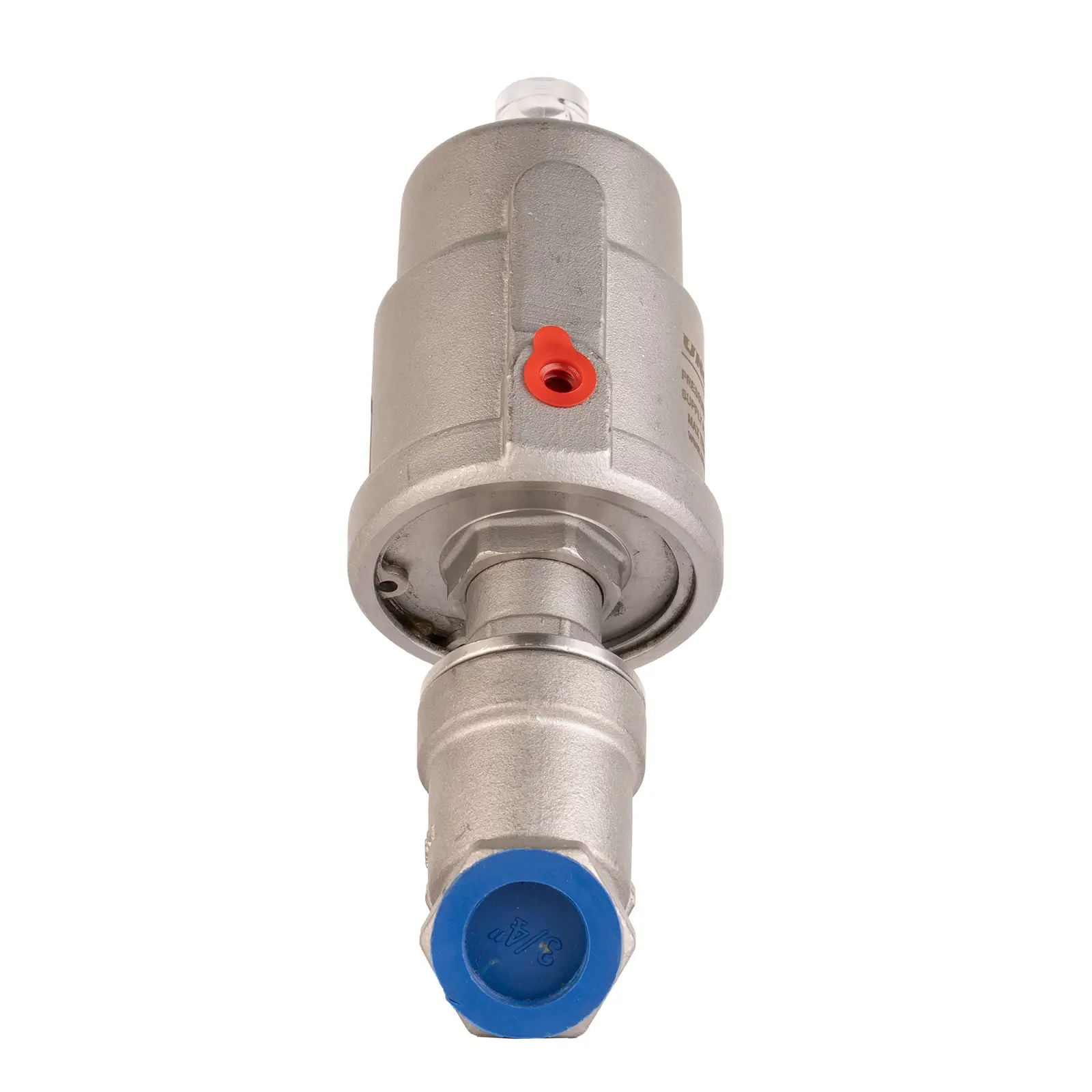

Pneumatic Piston Valve (Threaded, Y-Type) is an important component preferred for fast and precise control in industrial fluid systems. Its Y-type body design directs liquid and gas flows while minimizing energy loss. The threaded connection feature allows easy integration into different systems. Additionally, this type of valve operates without performance loss even under high temperature and pressure conditions.

Sayfa İçeriği

Operating Principle and Control Methods

The piston inside the valve moves forward when compressed air is applied, allowing fluid to pass through. When the air pressure is cut off, the piston returns to its initial position with the help of a spring, enabling automatic control. In double-acting models, both opening and closing operations are performed using air pressure. This increases system precision and allows the flow to be managed even during sudden changes.

Material Structure and Technical Details

The body is made of 316-grade stainless steel, while the actuator is made of 304-grade stainless steel. These materials provide corrosion resistance and ensure long-term durability. The operating temperature reaches up to 180°C, and the pressure range extends from 3 to 8 bar. The connection ends are offered with BSP threads, making them compatible with standard piping systems. Its modular design allows easy integration into required areas.

Application Areas and Industrial Use

This valve model is widely used in beverage bottling machines, the chemical industry, and gas systems. It stands out for its durability, especially in high-temperature disinfection lines. It also delivers efficient performance in water and wastewater treatment systems, foaming equipment, and textile dyeing systems. Additionally, similar product variations can be easily explored on Unox Online.

Installation, Advantages, and Long-Lasting Performance

The Y-type design reduces water hammer in the system and provides up to 30% smoother flow. The threaded construction strengthens valve connections and enhances sealing. The cylinder section can rotate 360 degrees, offering ease of installation. Additionally, the piston and pinion system, with its specially designed gears, ensures quiet and efficient operation. Maintenance requirements are minimized, and system reliability is continuously maintained. Technical support and pricing information can be obtained through the contact page.
