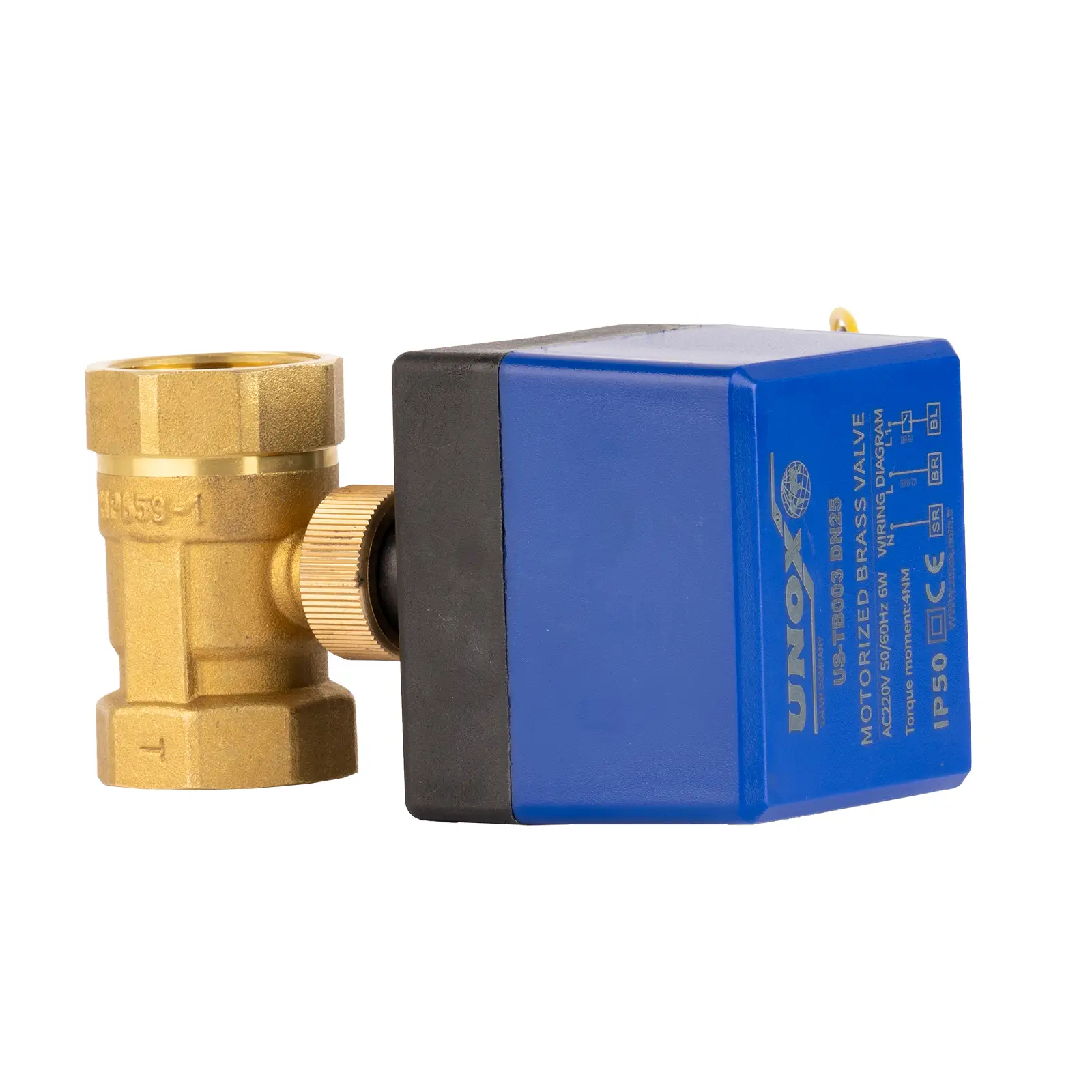

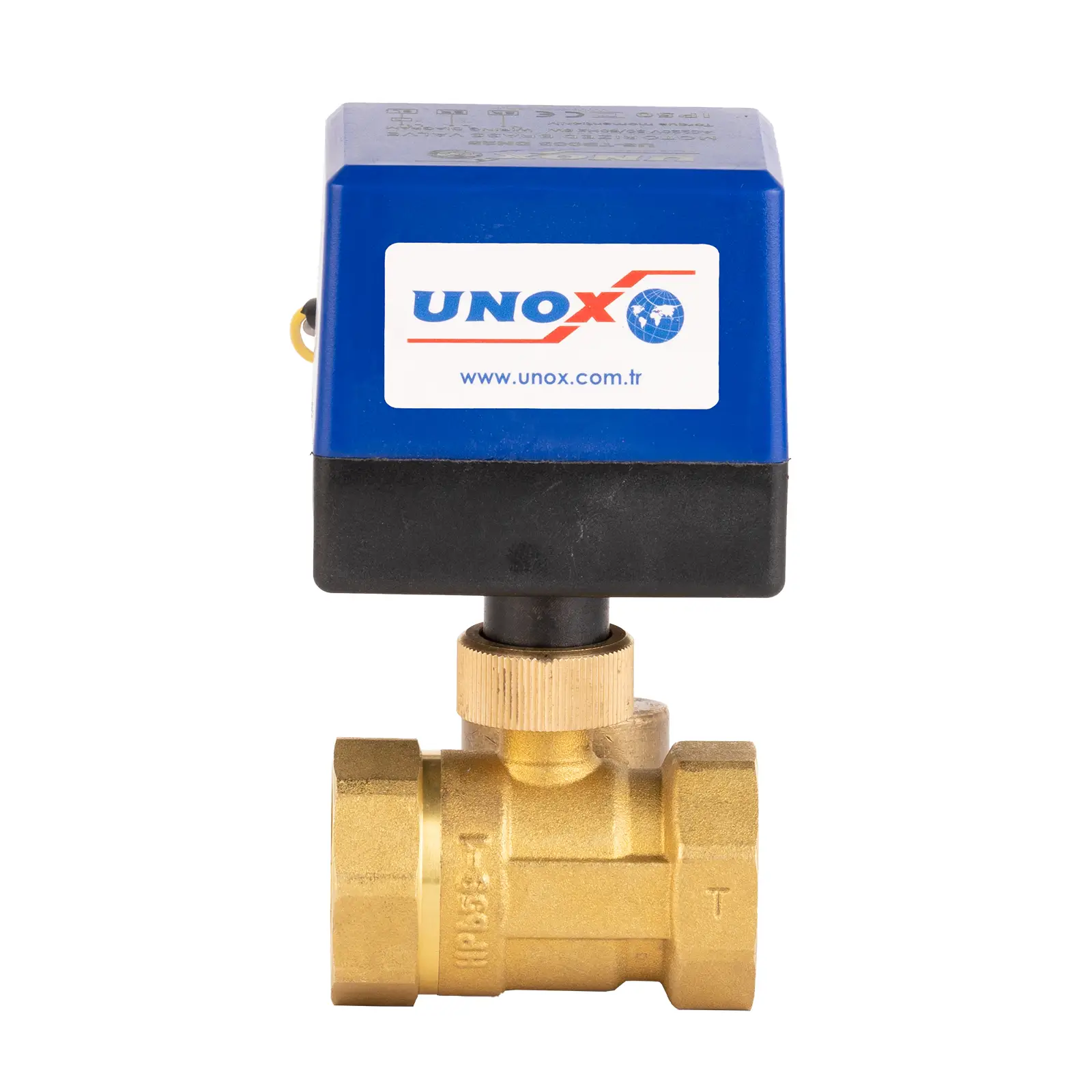

The mini motorized ball valve is designed to automatically control liquid flow in small-scale piping systems. This product group uses a ball-type control element placed inside the valve body. The hole within the ball allows the liquid flow to be opened or closed. An electric motor rotates the ball using a quarter-turn principle, regulating the flow direction as desired. Its compact design and precise control capability ensure maximum efficiency in tight spaces. Production is carried out by Unox according to high-quality standards.

Sayfa İçeriği

Which Sectors Are the Application Areas Covered?

Mini motorized ball valves are preferred across many sectors to safely manage liquid flow. In water treatment facilities, they ensure balanced distribution of water and treatment chemicals throughout pipelines. In the chemical industry, they provide durable and controlled flow management in systems handling corrosive liquids. In HVAC systems, they optimize heating and cooling systems to regulate ambient temperature. Additionally, in food and beverage production facilities, they enable hygienic liquid transfer. In medical devices and pharmaceutical manufacturing, they allow safe, controlled dosing. This ensures tailored solutions to meet the specific needs of each sector.

Product Features and Technical Details

Mini motorized ball valves are integrated into piping systems via an internal threaded connection. The valve body is made of forged brass, providing high mechanical durability. Opening and closing operations are completed in approximately 15 seconds. Torque ranges between 2 Nm and 4 Nm. The operating temperature is specified between 2 °C and 80 °C. The motor is On/Off type and operates at AC 24V or AC 230V. Additionally, compliance with IP65 protection class ensures safety against external factors. All technical documents are accessible via Unox Online.

Control Capability and Installation Flexibility

These valves can be easily integrated into processes thanks to their direct connectivity to automation systems. Their compact design ensures efficient performance even in tight spaces. During installation, however, the flow direction and valve position must be properly aligned. The electric motor is only activated when a signal is received, ensuring energy efficiency. Additionally, maintenance requirements are kept to a minimum, supporting long-lasting operation. This provides businesses with a sustainable solution.
